3 Basic plotting

In this lesson we will learn to use the plot() method of a pandas.DataFrame to create simple exploratory graphs from tabular data.

Learning objectives

By the end of this lesson students will be able to:

Obtain and interpret preliminary information about a pandas.DataFrame using methods such as info() (structure), describe() (summary statistics), nunique() (unique value counts), unique() (distinct values), and value_counts() (frequency counts)
Create simple exploratory plots using the plot() method for pandas.DataFrames to visualize trends and distributions
Understand the concept of performing operations on a pandas.DataFrame in-place
Apply method chaining to enable concise and readable code

About the data

In this lesson we will reuse the annual estimates of bird species abundance in four coastal wetlands along the California coast that we used in the previous lesson on subsetting a pandas.DataFrame. This dataset was derived for education purposes for this course from the UCSB SONGS Mitigation Monitoring: Wetland Performance Standard - Bird Abundance and Species Richness dataset [1]. The SONGS dataset was collected as part of the San Onofre Nuclear Generating Station (SONGS) San Dieguito Wetland Restoration monitoring program.

The annual bird species abundance estimates is a CSV file with 13 columns and 14 rows. You can see the first three rows below.

	year	CSM_winter	CSM_spring	CSM_fall	MUL_winter	MUL_spring	MUL_fall	SDW_winter	SDW_spring	SDW_fall	TJE_winter	TJE_spring	TJE_fall
0	2010	39.0	40.0	50.0	45.0	NaN	61.0	NaN	75.0	85.0	NaN	NaN	81.0
1	2011	48.0	44.0	NaN	58.0	52.0	NaN	78.0	74.0	NaN	67.0	70.0	NaN
2	2012	51.0	43.0	49.0	57.0	58.0	53.0	71.0	72.0	73.0	70.0	63.0	69.0

The four wetlands where the bird surveys occured are Carpinteria Salt Marsh (CSM), Mugu Lagoon (MUL), the San Dieguito Wetland (SDW), and the Tijuana Estuary (TJE). The values from the second column to the last column correspond to the number of different bird species recorded across the survey sites in each wetland during winter, spring, and fall of a given year. For example, the CSM_fall column has the number of species recorded in fall at Carpinteria Salt Marsh across years. The year column corresponds to the calendar year on which the data was collected. Surveys have happened yearly from 2010 to 2023.

`plot()` method

Let us start by loading the data:

import pandas as pd

# Read in file
df = pd.read_csv('data/wetlands_seasonal_bird_diversity.csv')

# Check the first 5 rows
df.head()

	year	CSM_winter	CSM_spring	CSM_fall	MUL_winter	MUL_spring	MUL_fall	SDW_winter	SDW_spring	SDW_fall	TJE_winter	TJE_spring	TJE_fall
0	2010	39.0	40.0	50.0	45.0	NaN	61.0	NaN	75.0	85.0	NaN	NaN	81.0
1	2011	48.0	44.0	NaN	58.0	52.0	NaN	78.0	74.0	NaN	67.0	70.0	NaN
2	2012	51.0	43.0	49.0	57.0	58.0	53.0	71.0	72.0	73.0	70.0	63.0	69.0
3	2013	42.0	46.0	38.0	60.0	58.0	62.0	69.0	70.0	70.0	69.0	74.0	64.0
4	2014	38.0	43.0	45.0	49.0	52.0	57.0	61.0	78.0	71.0	60.0	81.0	62.0

A pandas.DataFrame has a built-in method plot() for plotting. When we call it without specifying any other parameters plot() creates one line plot for each of the columns with numeric data.

# Default plot(): one line plot per column with numeric data
df.plot()

As we can see, this doesn’t make much sense! In particular, look at the x-axis. The default for plot is to use the values of the index as the x-axis values. Let’s see some examples about how to improve this situation.

Line plots

We can make a line plot of one column against another by using the following the general syntax:

df.plot(x='x_values_column', y='y_values_column')

Example

If we want to plot the bird surveys at Carpinteria Salt Marsh across years we can do:

# Birds species registered during winter at CSM yearly
df.plot(x='year', y='CSM_winter')

We can do some basic customization specifying other parameters of the plot() method. Some basic ones are:

title: title to use for the plot.
xlabel: name to use for the x-label on x-axis
ylabel: bame to use for the y-label on y-axis
color: change the color of our plot
legend: boolean value True or False. True (default) includes the legend, False removes the legend

In action:

df.plot(x='year',
        y='CSM_winter',
        title='Bird species registered during winter at Carpinteria Salt Marsh',
        xlabel='Year',
        ylabel='Number of bird species',
        color='green',
        legend=False
        )

You can see all the optional parameters for the plot() function in the documentation.

Check-in

Plot a graph of the spring bird surveys at Mugu Lagoon with respect to the years. Include some basic customization.
Use the isna() method for pandas.Series and row selection to select the rows in which Mugu Lagoon has NAs during the spring survey.

Multiple line plots

We can plot multiple line plots by updating these parameters in the plot() method:

y : a list of column names that will be plotted against the x-axis
color: a dictionary {'column_1' : 'color_1', 'column_2':'color_2} specifying the color of each column’s line plot

Example

Let’s say we want to compare the bird surveys at the Tijuana Estuary during spring and fall across years.

df.plot(x='year',
        y=['TJE_spring', 'TJE_fall'],
        title = 'Seasonal bird surveys at Tijuana Estuary',
        xlabel='Year',
        ylabel='Number of bird species',
        color = {'TJE_spring':'#F48FB1',
                 'TJE_fall': '#AB47BC'
                 }
        )

Notice that for specifying the colors we used a HEX code, this gives us more control over how our graph looks.

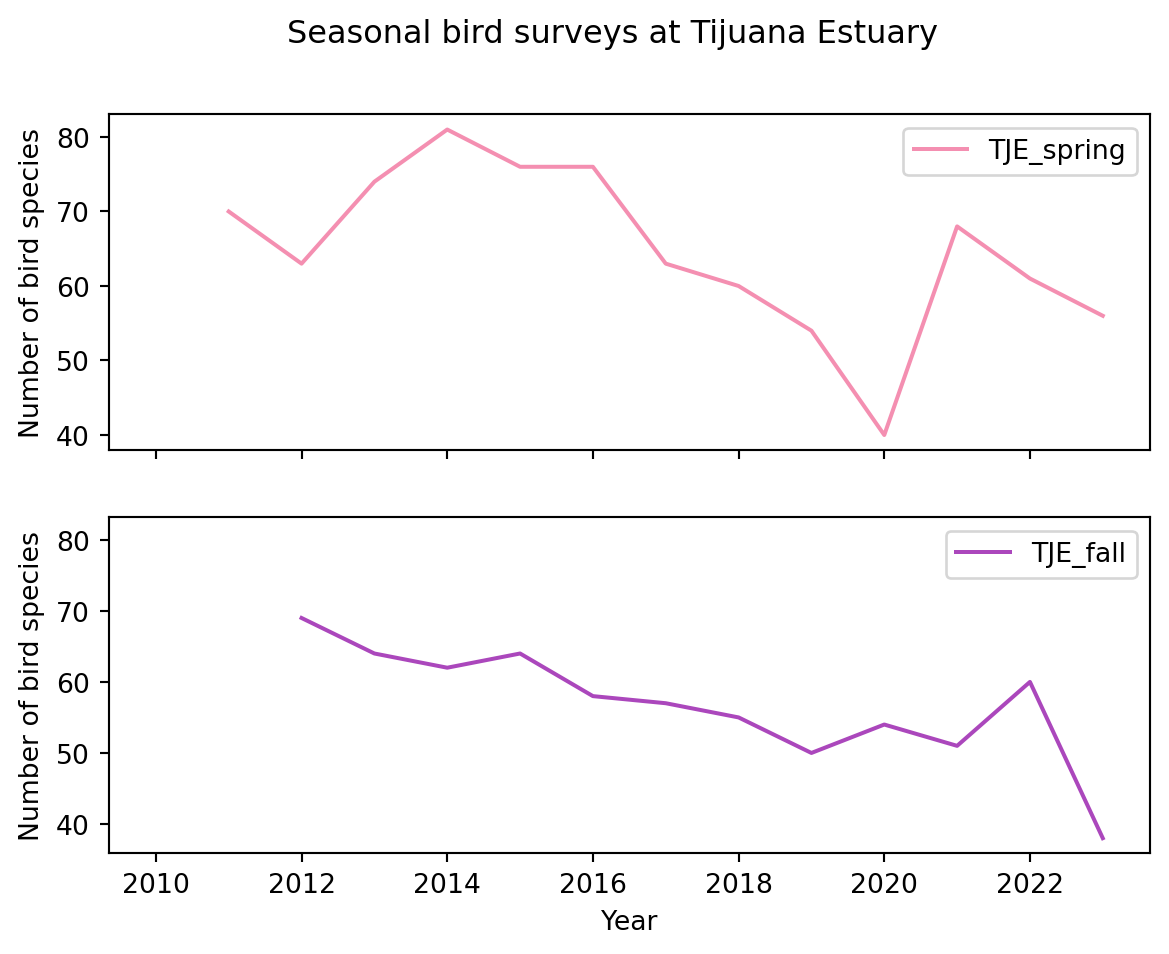

We can also create separate plots for each column by setting the subset to True.

df.plot(x='year',
        y=['TJE_spring', 'TJE_fall'],
        title = 'Seasonal bird surveys at Tijuana Estuary',
        xlabel='Year',
        ylabel='Number of bird species',
        color = {'TJE_spring':'#F48FB1',
                 'TJE_fall': '#AB47BC'
                 },
        subplots=True
        )

array([<Axes: xlabel='Year', ylabel='Number of bird species'>,
       <Axes: xlabel='Year', ylabel='Number of bird species'>],
      dtype=object)

Updating the index

Updating the index of our data frame to be something other than the default integers numbering the rows can be a useful operation for plotting. To update the index we use the set_index() method for a pandas.DataFrame. It’s general syntax is:

df = df.set_index(new_index)

where new_index is:

the name of the column in the data frame df we want to use as new index
if our new index is not a column in the data frame, an array or pandas.Series of the same length as our data frame (we need one index per row).

This operation does not happen in-place.

A funciton acting in-place means that our original object (in this case a pandas.DataFrame) is modified.
If the function does not act in-place, a new object (in this case a pandas.DataFrame) is created and the original is not modified.

If we wanted to update our df data frame we could do an explicit assignment to reassign the output of set_index() to df:

# Set `column_name` column in df as the new index (reassignment)
df = df.set_index('column_name')

or use the optional inplace parameter:

# Set `column_name` column in df as the new index (modify df in-place)
df.set_index('column_name', inplace=True)

In general, avoid using the inplace=True argument and favor explicit variable assignments

Check the information about the inplace parameter in the set_index() documentation. You will often see the inplace parameter in methods for pandas.DataFrames. The best practice is to avoid inplace=True for better readability and maintainable code. Explicitly assigning the result to a new variable or the same variable makes it clear that an operation has occurred.

Example

In all our previous examples we used the year column as the x-axis. Since all our bird survey variables are dependent on the year, it makes sense to use the year column as the index of the data frame:

# Update index to be the year column
df = df.set_index('year')
df.head()

	CSM_winter	CSM_spring	CSM_fall	MUL_winter	MUL_spring	MUL_fall	SDW_winter	SDW_spring	SDW_fall	TJE_winter	TJE_spring	TJE_fall
year
2010	39.0	40.0	50.0	45.0	NaN	61.0	NaN	75.0	85.0	NaN	NaN	81.0
2011	48.0	44.0	NaN	58.0	52.0	NaN	78.0	74.0	NaN	67.0	70.0	NaN
2012	51.0	43.0	49.0	57.0	58.0	53.0	71.0	72.0	73.0	70.0	63.0	69.0
2013	42.0	46.0	38.0	60.0	58.0	62.0	69.0	70.0	70.0	69.0	74.0	64.0
2014	38.0	43.0	45.0	49.0	52.0	57.0	61.0	78.0	71.0	60.0	81.0	62.0

# Simple plot of Carpinteria Salt Marsh winter surveys
df.plot(y='CSM_winter')

If needed, we can reset the index to be the numbering of the rows:

df = df.reset_index()
df.head()

	year	CSM_winter	CSM_spring	CSM_fall	MUL_winter	MUL_spring	MUL_fall	SDW_winter	SDW_spring	SDW_fall	TJE_winter	TJE_spring	TJE_fall
0	2010	39.0	40.0	50.0	45.0	NaN	61.0	NaN	75.0	85.0	NaN	NaN	81.0
1	2011	48.0	44.0	NaN	58.0	52.0	NaN	78.0	74.0	NaN	67.0	70.0	NaN
2	2012	51.0	43.0	49.0	57.0	58.0	53.0	71.0	72.0	73.0	70.0	63.0	69.0
3	2013	42.0	46.0	38.0	60.0	58.0	62.0	69.0	70.0	70.0	69.0	74.0	64.0
4	2014	38.0	43.0	45.0	49.0	52.0	57.0	61.0	78.0	71.0	60.0	81.0	62.0

Check-in

Without running the code, give a step-by-step breakdown of what this code is doing:

df.set_index('year').loc[:,'SDW_winter':'TJE_fall'].plot()

Is this code modifying the data frame df? Why or why not?
Run the code and examine the graph. Review the data description. Do we have all the necessary information to make sure it makes sense to directly compare the surveys at these different sites?

Method chaining

The code used in the check-in

df.set_index('year').loc[:,'SDW_winter':'TJE_fall'].plot()

is an example of method chaining. Each method in the chain returns an object (typically the same object), allowing the next method to be called directly on the result. This is a powerful technique that makes code concise and readable.

Chaining methods can result in lines of code that are too long and hard to read. We can break up chains of methods by using parenthesis:

(df.set_index('year')
  .loc[:,'SDW_winter':'TJE_fall']
  .plot()
)

Method chaining and the R pipe operator

If you are familiar with R, you may have noticed that the period . in the method chianing acts in the same way as the R pipe operator (%>% or |>). The syntax of one method per line is similar to what is used in the tidyverse, except that the pipe is used at the end of the line, while the period is used at the beginning of the line.

An alternative to the previous code chaining could have been:

year_index_df = df.set_index('year')
subset_df = year_index_df.loc[:,'SDW_winter':'TJE_fall']
subset_df.plot()

While this accomplishes the same output, several variables are created along the way and it can be difficult to keep track of what is what.

Use method chaining wisely

Method chaining is particularly useful in pandas for streamlining multiple data manipulations. However:

method chaining should be used with care to avoid overly complex and difficult-to-debug code, and
if you’re not familiar with the methods, it’s better to apply them individually and review the results after each step.

We will move on to another dataset for the rest of this lesson.

About the data

For the next plots we will use the Palmer Penguins dataset [2] developed by Drs. Allison Horst, Alison Hill and Kristen Gorman. This dataset contains size measurements for three penguin species in the Palmer Archipelago, Antarctica during 2007, 2008, and 2009.

The Palmer Archipelago penguins. Artwork by Dr. Allison Horst.

The dataset has 344 rows and 8 columns. We can see it’s first three rows below:

	species	island	bill_length_mm	bill_depth_mm	flipper_length_mm	body_mass_g	sex	year
0	Adelie	Torgersen	39.1	18.7	181.0	3750.0	male	2007
1	Adelie	Torgersen	39.5	17.4	186.0	3800.0	female	2007
2	Adelie	Torgersen	40.3	18.0	195.0	3250.0	female	2007

Data exploration

The data is usually accessed through the palmerpenguins R data package [2]. In this lesson we will access the CSV directly into our workspace using the URL: https://raw.githubusercontent.com/allisonhorst/palmerpenguins/main/inst/extdata/penguins.csv

Let’s start by reading in the data:

# Read in data
URL = 'https://raw.githubusercontent.com/allisonhorst/palmerpenguins/main/inst/extdata/penguins.csv'
penguins = pd.read_csv(URL)

penguins.head()

	species	island	bill_length_mm	bill_depth_mm	flipper_length_mm	body_mass_g	sex	year
0	Adelie	Torgersen	39.1	18.7	181.0	3750.0	male	2007
1	Adelie	Torgersen	39.5	17.4	186.0	3800.0	female	2007
2	Adelie	Torgersen	40.3	18.0	195.0	3250.0	female	2007
3	Adelie	Torgersen	NaN	NaN	NaN	NaN	NaN	2007
4	Adelie	Torgersen	36.7	19.3	193.0	3450.0	female	2007

And getting some preliminary information:

# Check column data types and NA values
penguins.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 344 entries, 0 to 343
Data columns (total 8 columns):
 #   Column             Non-Null Count  Dtype
---  ------             --------------  -----
 0   species            344 non-null    object
 1   island             344 non-null    object
 2   bill_length_mm     342 non-null    float64
 3   bill_depth_mm      342 non-null    float64
 4   flipper_length_mm  342 non-null    float64
 5   body_mass_g        342 non-null    float64
 6   sex                333 non-null    object
 7   year               344 non-null    int64
dtypes: float64(4), int64(1), object(3)
memory usage: 21.6+ KB

# Simple statistics about numeric columns
penguins.describe()

	bill_length_mm	bill_depth_mm	flipper_length_mm	body_mass_g	year
count	342.000000	342.000000	342.000000	342.000000	344.000000
mean	43.921930	17.151170	200.915205	4201.754386	2008.029070
std	5.459584	1.974793	14.061714	801.954536	0.818356
min	32.100000	13.100000	172.000000	2700.000000	2007.000000
25%	39.225000	15.600000	190.000000	3550.000000	2007.000000
50%	44.450000	17.300000	197.000000	4050.000000	2008.000000
75%	48.500000	18.700000	213.000000	4750.000000	2009.000000
max	59.600000	21.500000	231.000000	6300.000000	2009.000000

We can also subset the dataframe to get information about a particular column or groups of columns:

# Count unique values in categorical columns and year
penguins[['species', 'island', 'sex', 'year']].nunique()

species    3
island     3
sex        2
year       3
dtype: int64

# Get unique values in species column
penguins['species'].unique()

array(['Adelie', 'Gentoo', 'Chinstrap'], dtype=object)

# Number of values per unique value in species column
penguins['species'].value_counts()

species
Adelie       152
Gentoo       124
Chinstrap     68
Name: count, dtype: int64

`kind` argument in `plot()`

At the beginning of the lesson we talked about how the plot() method creates a line plot by default. The parameter that controls this behaviour is the kind parameter. By changing the value of kind we can create different kinds of plots. Let’s look at the documentation to see what these values are:

Extract from the `pandas.DataFrame.plot` documentation. Accessed on Sept 25,2024

Notice the default value of kind is 'line'.

Let’s change the kind parameter to create some different plots.

Scatter plots

Suppose we want to visualy compare the flipper length against the body mass, we can do this with a scatterplot:

penguins.plot(kind='scatter',
              x='flipper_length_mm',
              y='body_mass_g')

We can update some other arguments to customize the graph:

penguins.plot(kind='scatter',
              x='flipper_length_mm',
              y='body_mass_g',
              title='Flipper length and body mass for Palmer penguins',
              xlabel='Flipper length (mm)',
              ylabel='Body mass (g)',
              color='#ff3b01',
              alpha=0.4  # Controls transparency
              )

Bar plots

We can create bar plots of our data setting kind='bar' in the plot() method.

For example, let’s say we want to get data about the 10 penguins with lowest body mass. We can first select this data using the nsmallest() method for series:

smallest = penguins['body_mass_g'].nsmallest(10)
smallest

314    2700.0
58     2850.0
64     2850.0
54     2900.0
98     2900.0
116    2900.0
298    2900.0
104    2925.0
47     2975.0
44     3000.0
Name: body_mass_g, dtype: float64

We can then plot this data as a bar plot

smallest.plot(kind='bar')

If we wanted to look at other data for these smallest penguins we can use a different call to the nsmallest method:

penguins.nsmallest(10, 'body_mass_g')

	species	island	bill_length_mm	bill_depth_mm	flipper_length_mm	body_mass_g	sex	year
314	Chinstrap	Dream	46.9	16.6	192.0	2700.0	female	2008
58	Adelie	Biscoe	36.5	16.6	181.0	2850.0	female	2008
64	Adelie	Biscoe	36.4	17.1	184.0	2850.0	female	2008
54	Adelie	Biscoe	34.5	18.1	187.0	2900.0	female	2008
98	Adelie	Dream	33.1	16.1	178.0	2900.0	female	2008
116	Adelie	Torgersen	38.6	17.0	188.0	2900.0	female	2009
298	Chinstrap	Dream	43.2	16.6	187.0	2900.0	female	2007
104	Adelie	Biscoe	37.9	18.6	193.0	2925.0	female	2009
47	Adelie	Dream	37.5	18.9	179.0	2975.0	NaN	2007
44	Adelie	Dream	37.0	16.9	185.0	3000.0	female	2007

Histograms

We can create a histogram of our data setting kind='hist' in plot().

# Using plot without subsetting data - a mess again
penguins.plot(kind='hist')

To gain actual information, let’s subset the data before plotting it. For example, suppose we want to do a preliminary graph for the distribution of flipper length. We could do it in this way:

# Distribution of flipper length measurements
# First select data, then plot
penguins['flipper_length_mm'].plot(kind='hist',
                                title='Penguin flipper lengths',
                                xlabel='Flipper length (mm)',
                                grid=True)

Check-in

Select the bill_length_mm and bill_depth_mm columns in the penguins dataframe and then update the kind parameter to box to make boxplots of the bill length and bill depth.
Create a simple histogram of the flipper length of female gentoo penguins.

References

[1]

S. C. Schroeter et al., “UCSB SONGS Mitigation Monitoring: Wetland Survey - Bird Abundance.” Environmental Data Initiative, 2024. doi: 10.6073/PASTA/5E5E4D0C6BBF455B9F2474ED05C31072. Available: https://portal.edirepository.org/nis/mapbrowse?packageid=edi.649.6. [Accessed: Sep. 13, 2024]

[2]

A. M. Horst, A. P. Hill, and K. B. Gorman, Palmerpenguins: Palmer archipelago (antarctica) penguin data. 2020. Available: https://allisonhorst.github.io/palmerpenguins/

3 Basic plotting

Learning objectives

About the data

plot() method

Line plots

Example

Multiple line plots

Example

Updating the index

Example

Method chaining

About the data

Data exploration

kind argument in plot()

Scatter plots

Bar plots

Histograms

References

`plot()` method

`kind` argument in `plot()`
